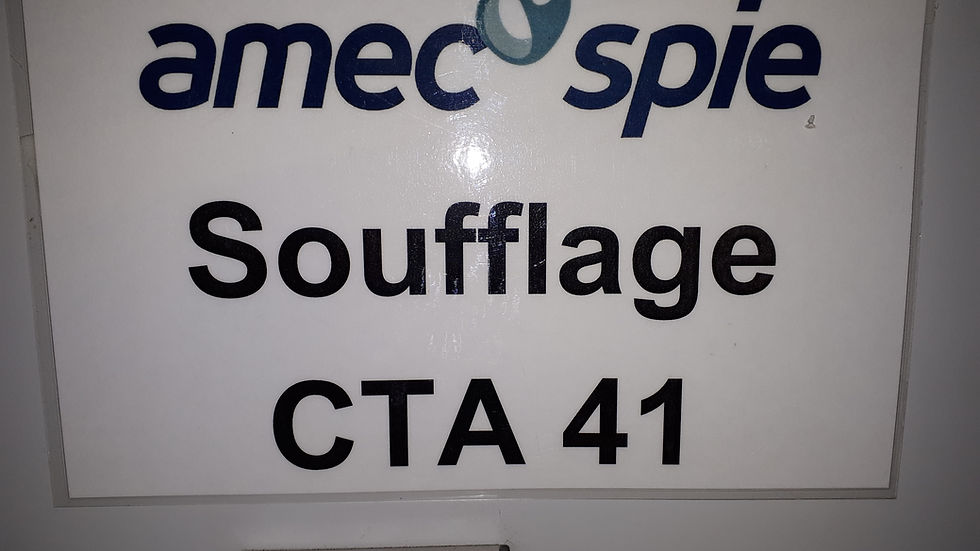

Air Handling Unit CTA 41-Robatherm-026.SF

Brand: Robatherm

YOM: 2016

Lot Number: 026.SF

Plant : 9600 m3/H

Air Handling Unit CTA 41-Robatherm-026.SF

SKU : 026.SF
  • Supply Air Fan



    Fan Speed

    2129 (73Hz) t/mn

    Max Speed

    2388 (82Hz) t/mn.

    Engine Power

    9 kW

    Air Flow

    9600 M3/H

    Motor Speed

    1450 t/mn

    External Pressure

    800 pa

    Voltage

    400/690/50 V/50 Hz

    Total Pressure

    1480 pa

    Absord Current

    18,4 A

    Filter



    Air Flow

     9600 mᶟ/h.

    Dirty Filter Pressure Drop

    300 Pa.

    Class

    F 9

    Delta P  Filter

    72 Pa.

    Number Of Filters

    4X1/1 0X1/2

    Cold Battery



    Heat  Transfer Fluid

    EAU

    Cold Capacity

    119 kW

    Air Flow

    9600 M3/H

    Fluid Temp

    7 | 12 °C

    HOT BATTERY



    HEAT TRANSFER FLUID

    EAU.

    HOT CAPACITY

    157 kw.

    AIR FLOW

    9600 mᶟ/h.

    FLUID TEMP

    80 | 60°C

    PIEGE A SON



    AIR FLOW

    18286 mᶟ/h.

    SOUND ATTENUATION

    19 dB

    FILTER



    AIR FLOW

    9600 M3/H

    DIRTY FILTER PRESSURE DROP

    200 pa

    CLASS

    F 6

    DELTA P FILTER

    40 Pa

    NUMBER OF FILTERS

    4X1/1 0X1/2

    FILTER



    AIR FLOW

    9600 M3/H

    DIRTY FILTER PRESSURE DROP

    200 Pa

    CLASS

    G 4

    DELTA P FILTER

    35 Pa

    NUMBER OF FILTERS

    4X1/1  0X1/2

**Technical specifications are given to the best of our knowledge. However, we do exclude any liability on specifications and condition. Prospective buyers are invited to check all vital details upon an inspection.
