Alteco - Stainless Steel Vacuum - 10.000L - HTV5
SKU: PMC236-24-29

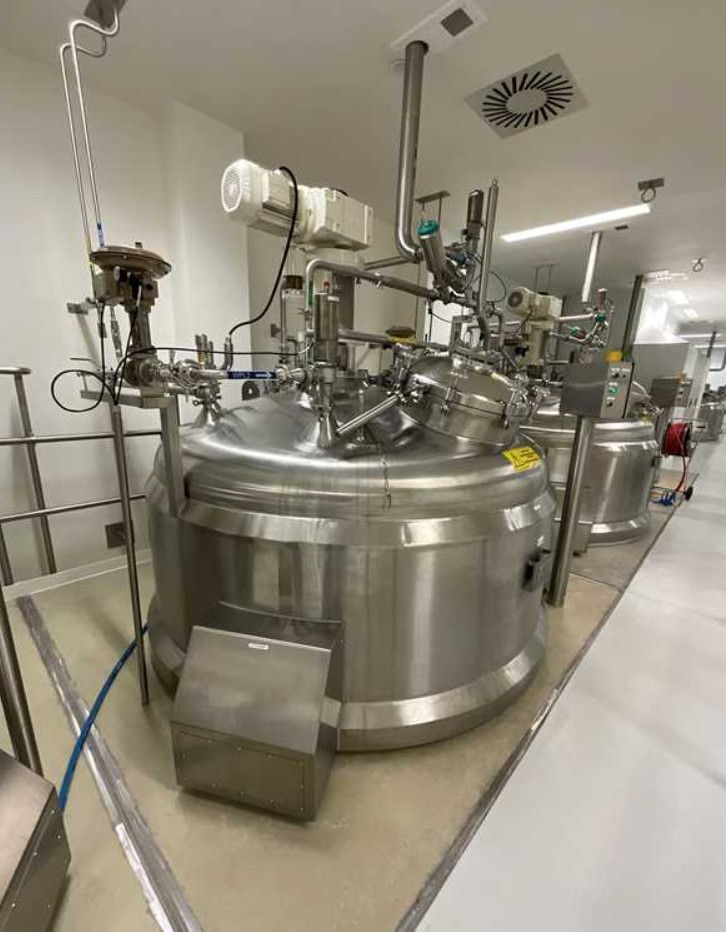

Alteco 10000 Litre Stainless Steel Vacuum Rated Mixing Vessel - HTV5
Year of Manufacture : 2010
Brand : Alteco
Serial Number : K10-0065-02Weight : 4000 KGS
- 600mm diameter top access nozzle with sight glass and manual wiper
- Off set agitator with 3 blades (possibly adjustable)
- Fully welded lagging
- 70mm Triclamp Plug Valve Bottom Outlet
- Temperature Transmitter in Bottom
- 2 off CIP Spray Balls in Top
- Dimensions : 3000 x 3000 x 4700 MM
** A site visit is possible **
More specifications & pictures on demand
Technical Information
Capacity 10.000 L
Internal Pressure Rating 3/-1 BAR Temperature Rating 135 DEG C Inside Diameter 2150 MM Overall Height 4000 MM Straight Side 2600 MM
