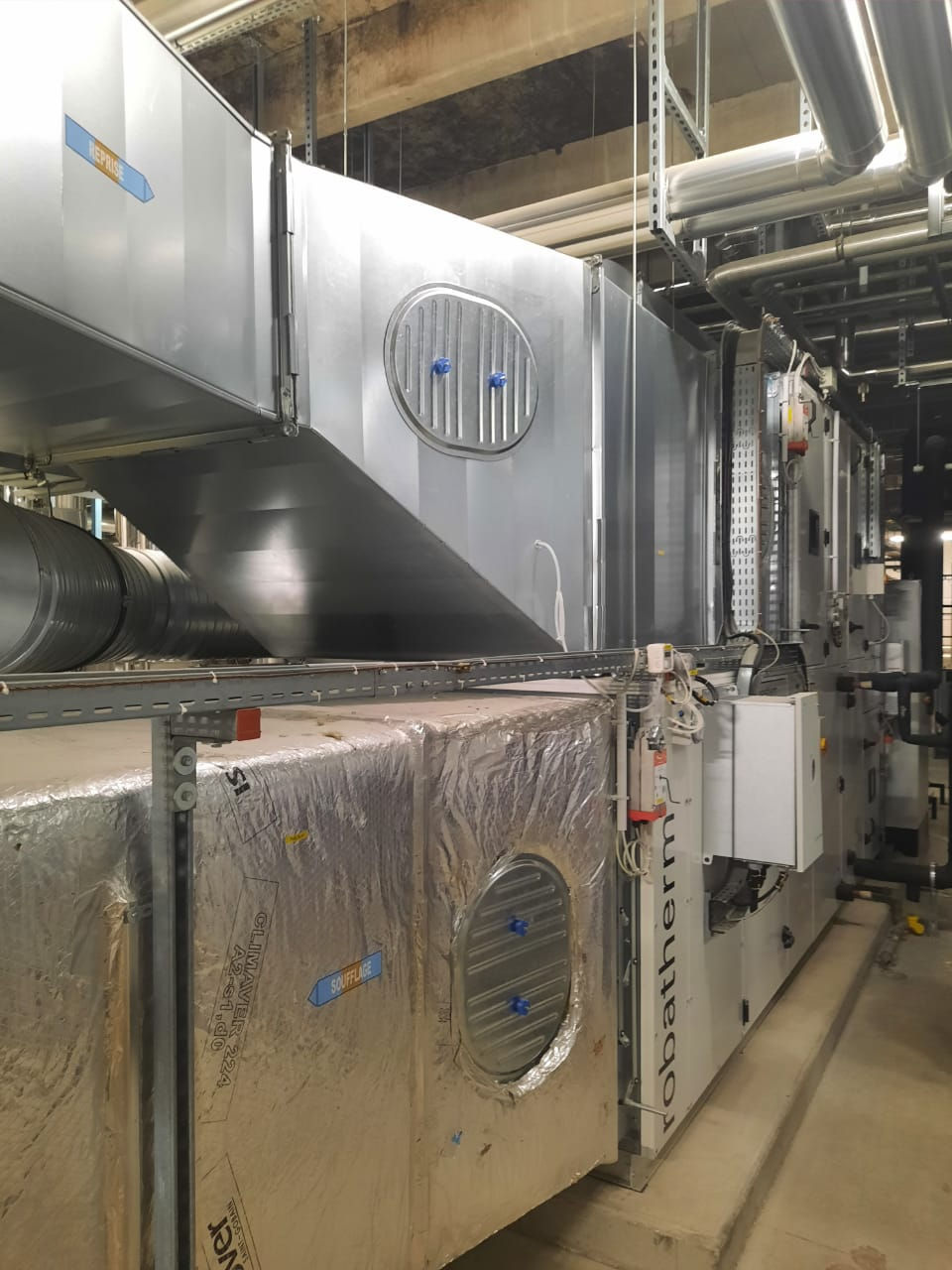

Air Handling Unit CTA 24-Robatherm-018.SF
Type: RM 12/18 + RM 12/15
Brand: Robatherm
YOM: 2016
Lot number : 018.SF
CTA 24 Plant : 18.000 m3/H
Technical Details
Supply Air Fan
Air Flow
15250 m3 / h.
External Pressure
900 Pa.
Total Pressure
1492 Pa.
Operating Speed
1780 1 / min.
Number Frequency
51 Hz
MAX Speed
2050 1 / MIN.
MAX. Frequency
70 HZ.
Motor Power
1x15 kW.
Motor Speed
1465 1 / min.
Voltage
400 V.
Network Frequency
50 Hz.
Absorbed Current
28,7 A.
Exhaust Air Fan
Air Flow
12600 M3/H
External Pressure
750 pa
Total Pressure
1051 pa
Operating Speed
1485 1/min
Number Frequency
51 Hz
MAX Speed
1720 1/min
MAX. Frequency
59 Hz
Motor Power
1x7,5 kW
Motor Speed
1460 1 /min
Voltage
400 V
Network Frequency
14,6 A
Filter
Air Flow
12600 mᶟ/h.
Dirty Filter Pressure Drop
200 Pa.
Class
F7
PDC Clean Filter
42 Pa.
Number Of Filters
4x1/1 2x1/2.
Cold Battery
Heat Transfer Fluid
EAU.
Cold Capacity
64,4 kw.
Air Flow
15250 mᶟ/h.
Fluid Temp
7 | 12°C
