SIERSEMA - Stainless Steel Vacuum - 10.000 L

SIERSEMA - Stainless Steel Vacuum - 10.000 L

SKU: PMC236-24-19

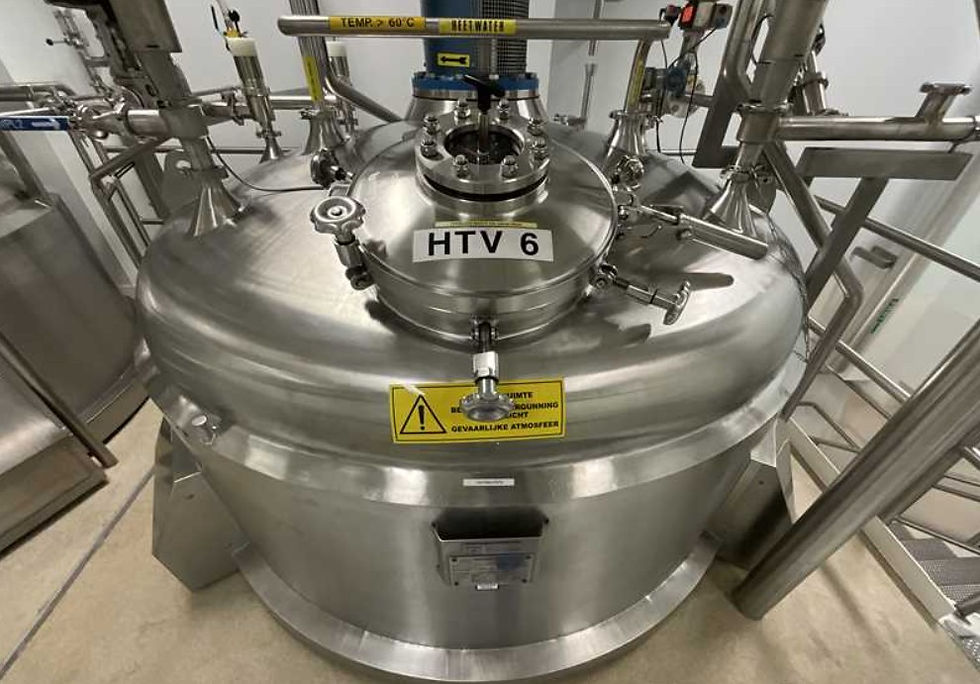

Siersema Stainless Steel Vacuum Rated Mixing Vessel - HTV6

Year of Manufacture : 1998
Brand : Siersema
Serial Number : 63.2751-1
Weight : 4000 KGS

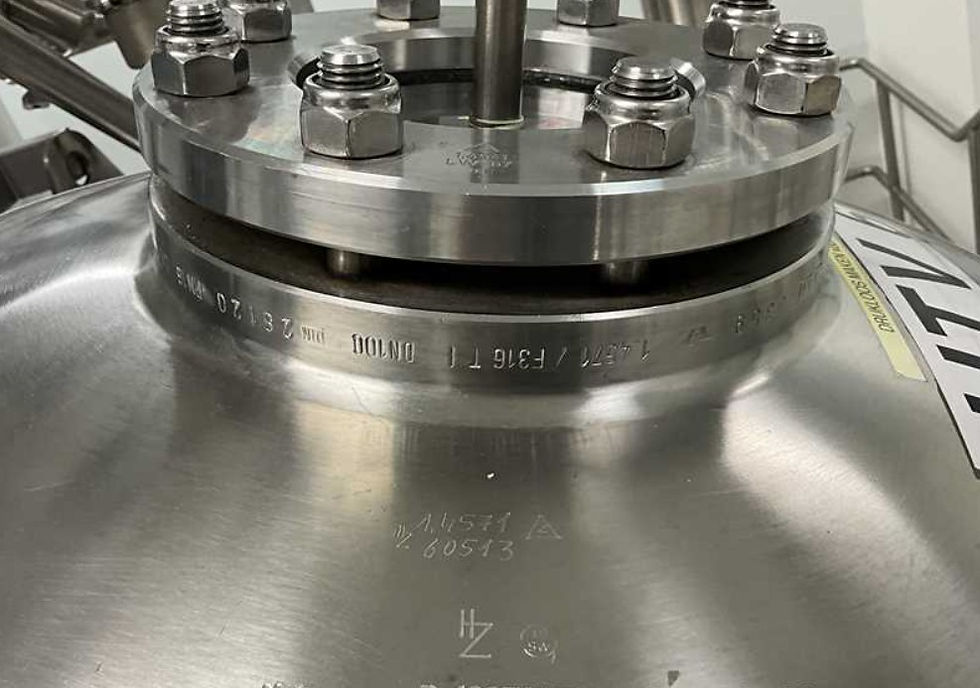

  • 450mm diameter top access nozzle with sight glass and manual wiper
  • Off set agitator with 3 blades (possibly adjustable)
  • Fully welded lagging

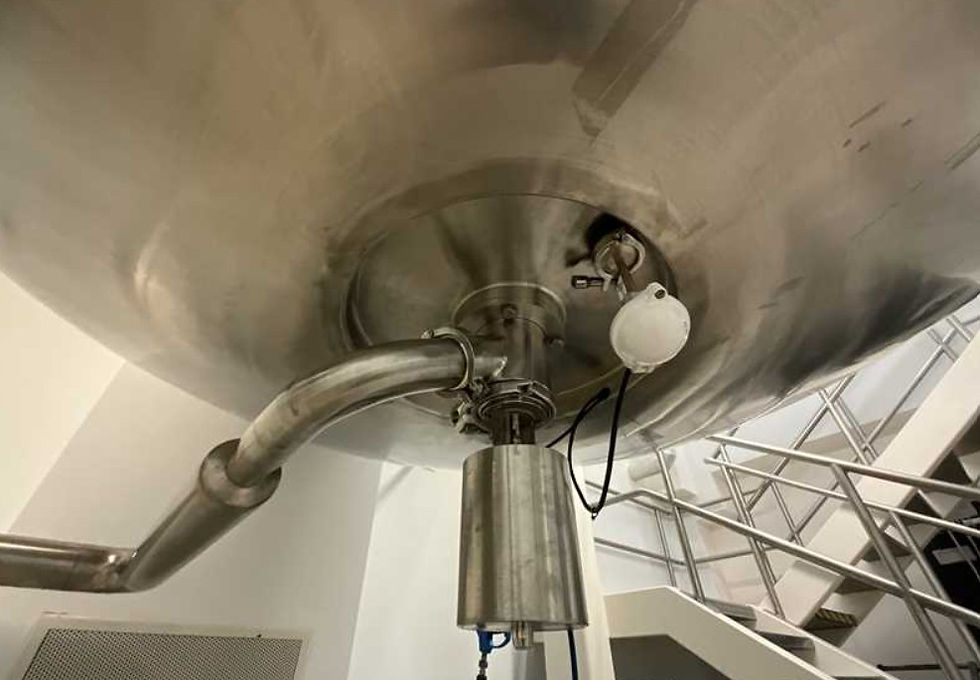

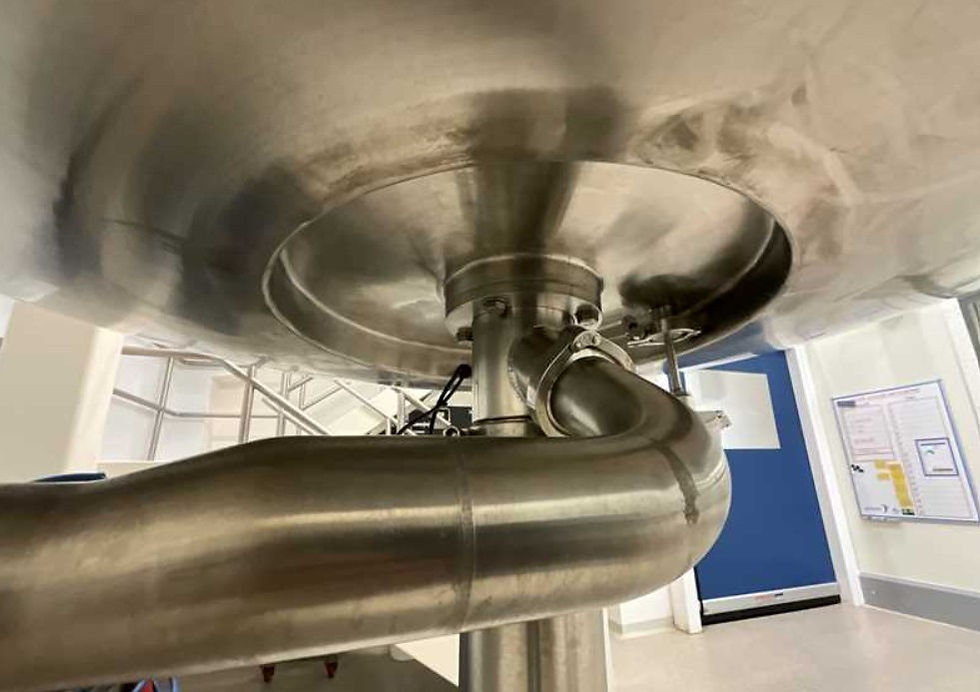

  • 60mm Triclamp Plug Valve Bottom Outlet
  • Temperature Transmitter in Bottom
  • 2 off CIP Spray Balls in Top
  • Dimensions are approximate :  3000 x 3000 x 4700 MM

** A site visit is possible **

More specifications & pictures on demand


  • Technical Information

    Capacity Size of Vessel 10.000L
    Internal Pressure Rating 3/-1 BAR
    Internal Temperature Rating 135 DEG C
    Inside Diameter 2200 MM
    Overall Height 4000 MM
    Straight Side 2550 MM
